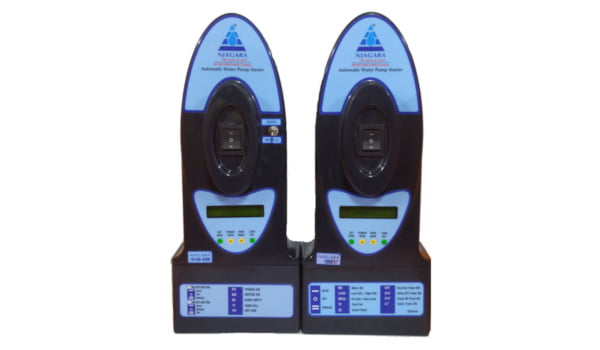

WIRELESS 1010S GSM BOD WITH 1000 GSM BOD

NIAGARA – WATER LEVEL CONTROLLER

Suitable For

  • All types of Single Phase Pumps

Features

  • Regional Languages Select Option for Voice response.
  • GSM(T/R) based wireless level Transmitter / Receiver.
  • Top Tank Level Control.
  • Bottom Tank Level Control.
  • Low / High Voltage Cut-off.
  • Dry Run / Over Load Protection.
  • Dry Run Restart Timer Facility / Cyclic Timer Facility, RTC Timer.
  • Adjustable Voltage & Current Settings.
Download Catalogue

Technical Specifications

Description Rating
Operating Voltage (AC) 1∅ – 150V to 270V
Operating Voltage for float Sensor Min 12V DC
Calibration accuracy +/- 5%
Dimension L 150 X W 80 X H 350 mm
Operating Current For Load
Relay Load 1∅ – 20 Amp
Motor Rating**
Direct Load *** 1∅ – 2 HP
Indirect Load *** Any Size

WIRELESS 3010 GSM WLC BOD WITH 1000 GSM BOD

NIAGARA – WATER LEVEL CONTROLLER

Suitable For

  • All types of Single Phase Pumps

Features

  • Regional Languages Select Option for Voice response.
  • GSM(T/R) based wireless level Transmitter / Receiver.
  • Top Tank Level Control.
  • Bottom Tank Level Control.
  • Low / High Voltage Cut-off.
  • Dry Run / Over Load Protection.
  • Dry Run Restart Timer Facility / Cyclic Timer Facility, RTC Timer.
  • Adjustable Voltage & Current Settings.
Download Catalogue

Technical Specifications

Description Rating
Operating Voltage (AC) 3∅ – 300V to 470V
Operating Voltage for float Sensor Min 12V to Max 30V DC
Calibration accuracy +/- 5%
Dimension L 150 X W 80 X H 350 mm
Operating Current For Load
Relay Load 3∅ – 10 Amp
Motor Rating**
Indirect Load *** Any Size

WIRELESS SWITCH TRANSMITTER – SSN

NIAGARA – WATER LEVEL CONTROLLER

Features

  • Elimination from tank to water level controller.
  • User-friendly LED indication.
  • It can be connected with all models of the Niagara water level controller.
  • Water pump controller since the water level in upper tank using float technology.
  • Switch off the water pump when the upper tank is full / when the sump is empty.
  • Switch on the water pump when the upper tank is empty and the sump has enough water.
  • Switch off the water pump during the dry running mode.
  • Magnetic tape low-level high-level operation.
Download Catalogue

Technical Specifications

Description Rating
Operating Voltage (AC) 1∅ – 150V to 270V
Operating Voltage for float Sensor Min 12V DC
Dimension L 130 X W 90 X H 70 mm
Operating Current For Load
Relay Load 1∅ – 20 Amp
Motor Rating**
Direct Load *** 1∅ – 2 HP
Indirect Load *** Any Size

WIRELESS SWITCH RECEIVER – SSN

NIAGARA – WATER LEVEL CONTROLLER

Features

  • Elimination from tank to water level controller.
  • User-friendly LED indication.
  • It can be connected with all models of the Niagara water level controller.
  • Water pump controller since the water level in upper tank using float technology.
  • Switch off the water pump when the upper tank is full / when the sump is empty.
  • Switch on the water pump when the upper tank is empty and the sump has enough water.
  • Switch off the water pump during the dry running mode.
  • Magnetic tape low-level high-level operation.
Download Catalogue

Technical Specifications

Description Rating
Operating Voltage (AC) 1∅ – 150V to 270V
Operating Voltage for float Sensor Min 12V DC
Dimension L 130 X W 90 X H 70 mm
Motor Rating**
Indirect Load *** Any Size
Our company’s main objective is to provide a complete water management automation system for the domestic, industrial and agricultural sectors.
